4 sided H-frame Compactainer®

The Compactainer® is a nesting Roll Cage designed to reduce manual operations, improve ergonomics and space efficiency.

This 4-sided unit eliminates the need for shrink-wrapping and reduces product damages.

It also enables you to reduce space requirements in outlets and storage rooms. The footprint of the Roll Cage is also calculated to maximize both transport cubic efficiency and warehouse space for buffering.

Equipped with gravity latches and dogbone retainers for the base and fixed shelf it is easy and safe to use.

  • Retail
  • Parcel and E-commerce
  • Industrial manufacturing

4 sided H-frame Compactainer®

4-sided H-frame Compactainer® by K.Hartwall

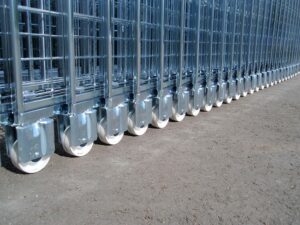

nested 4-sided H-frame Compactainer by K.Hartwall
4 sided H-frame Compactainer®

Technical specification

External dimensions1770 x 800 x 760 mm
Internal dimensions1576 x 800 x 716 mm
Unit tare weight46 kg
Safe working load per unit500 kg
Loaded units / 13,6m trailer66
Nested units / 13,6 m trailer153
Nesting increment235 mm
Castor size100 mm swivel + 125 mm fixed
Castor type2 fixed, 2 swivel
FinishZinc electro-plated + dip-lacquered
