A-MATE® Counter

Introducing the new counterbalanced AMR A-MATE Counter

The most compact counterbalanced AGV

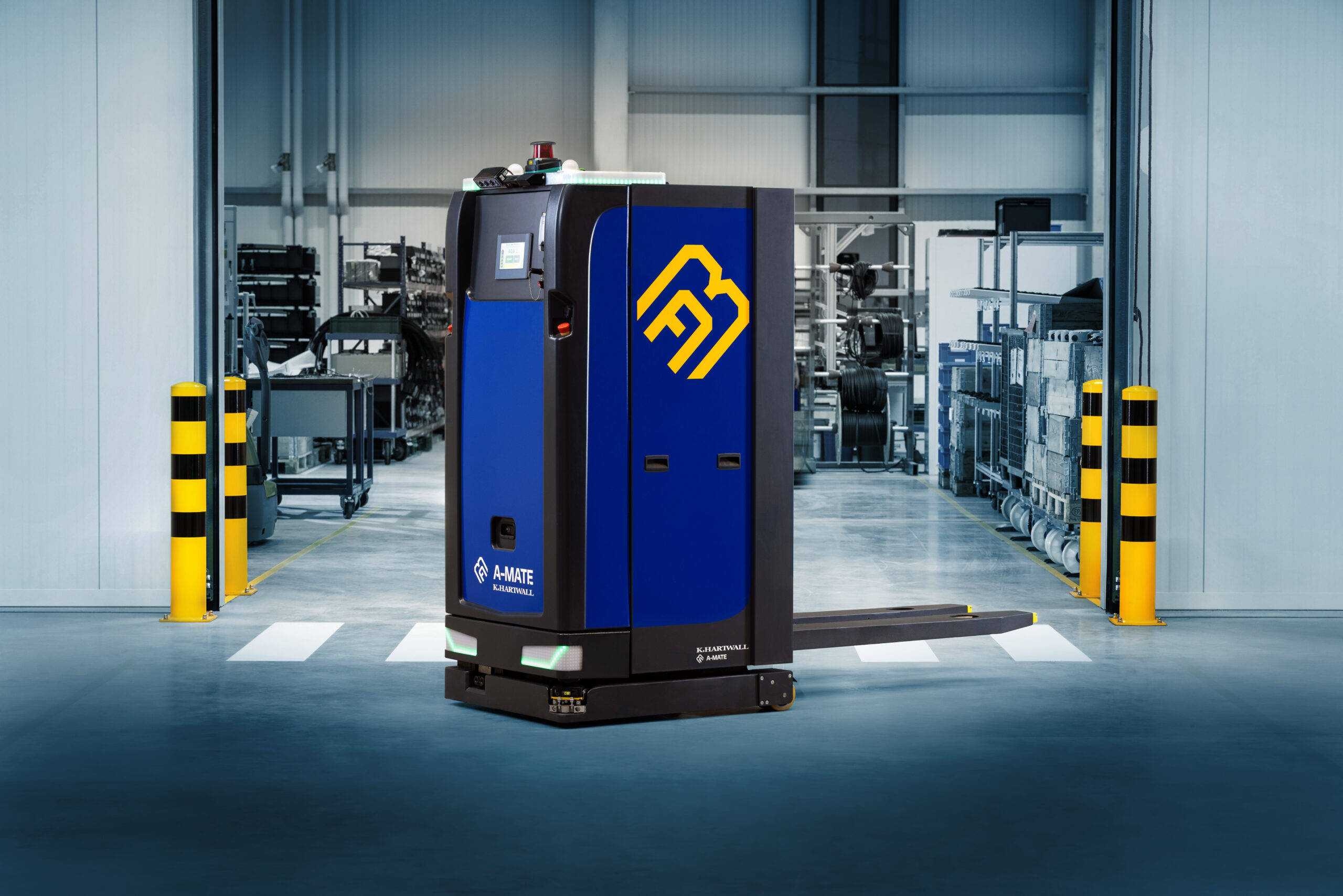

A-MATE® Counter

With the newest addition to the A-MATE® product family, users benefit from a fully electric mobile robot that has cantilevered forks and counterweight to move various load carriers like pallets or lattice boxes.



✓    Compact design
✓    Bidirectional drive
✓    Powerful electric free lift
✓    Customized load handling devices
✓    Pallet detection
✓    Minimal maintenance costs



Download product flyer
A-MATE Counter pallet handling with cantilevered forks

Usability

  • Compact design for agile moving and turning in tight spaces
  • Cantilevered forks and counterweight to transport pallets and lattice boxes
  • Long lasting and fast-charging Li-Ion batteries
  • Powerful electric free lift
  • VDA 505 interface

Speed & Accuracy

  • Bidirectional drive
  • Centralized fleet management
  • Contour-based LiDAR navigation
  • Maximum speed of 1.5 m/s
  • 2D Pallet detection
  • Obstacle avoidance

Safety

  • Emergency stop buttons
  • 360° safety coverage
  • Visual signals / clear light indicators
  • 3D obstacle detection

Space Efficiency

  • Bidirectional driving system for agile movements
  • Slim design makes it the most compact counterbalanced AMR in its payload class
  • Minimal operational space and aisle widths required

A-MATE Counter can handle closed pallets due to cantilevered forks

Powerful Free Lift

  • Powered by electricity
  • Lifting weight up to 1000 kg up to a height of 1.1 meter
  • A-MATE® Counter can handle units from the floor and from conveyor belts that were manually dropped off
  • Li-Ion batteries ensure long operating hours with minimal charging times

Download our AGV brochure
Counterbalanced AMR A-MATE Counter from K.Hartwall

Navigation

The A-MATE® automates product flows in demanding environments such as factories, warehouses and sorting centers.



To work reliably in a constantly changing environment, the A-MATE® Counter is equipped with:

  • the latest intelligent AMR software
  • Countour-based LiDAR navigation
  • a smart pallet detection feature to pick up manually dropped off load units like Euro-size pallets, from the floor, shelf or dolly
  • VDA 5050 interface

AGV safety with reliable scanners

360° safety

  • Continuous safety scanning, speed adjustment and obstacle avoidance
  • Clear light indicators for each operation, improving the interaction in a human environment
  • Emergency stop buttons are visible and accessible at any moment
  • Detection sensors and emergency stop switches in the fork tips
  • Emergency brakes
  • Interactive display

counterbalanced AMR A-MATE Counter transports closed pallets

Extremly Low Maintenance Costs

  • maintenance-friendly design
  • brushless electric drives
  • no hydraulics
  • carry-over parts in the A-MATE® product family



Our new counterbalanced AMR helps plant managers in the transition to a partial or fully automated operation, ultimately paving the way for industry 4.0.

Our new middleware A-GATE as multi-konnective gateway for integrative AGV solutions

New multi-connective gateway

A-GATE

Our new middleware for your integrative AGV solution

  • Interaction with different software from universal fleet managers to sensors for station monitoring
  • Simple and intuitive creation as well as execution of transport tasks
  • Centralized maintenance management for your A-MATE® fleet

Technical specification

Drive concept Bidirectional drive
Type Lifting fork
Driving speed 6.48 km/h or 1.8 m/s
Max. lifting height / max. shelf height 1100 mm / 1000 mm
Load capacity 1000 kg
Height 1915 mm
Width 824 mm
Length 2130 mm
Fork dimensions DIN ISO 2331 60/80/1200 mm
Fork carriage width 615 mm
Turning circle 3000 mm
Ground clearance 25 mm
Unit tare weight 2022 kg
Lift load carriers such as pallets, lattice boxes, roll cages, foldable cages

Selection of compatible products

3-sided Foldia®

SmartCube®

2 sided A-frame Compactainer®

Lean Adaptor Pallet

Lean Pallet Size Dolly
